B1020

2SB1020

B1020 General Description

¡¤ With TO-220Fa package ¡¤ High DC current gain ¡¤ Low saturation voltage ¡¤ Complement to type 2SD1415 APPLICATIONS www.DataSheet4U.com ¡¤ ¡¤ High power switching applications Hammer drive,pulse motor drive applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220Fa) a.

B1020 Datasheet (66.52 KB)

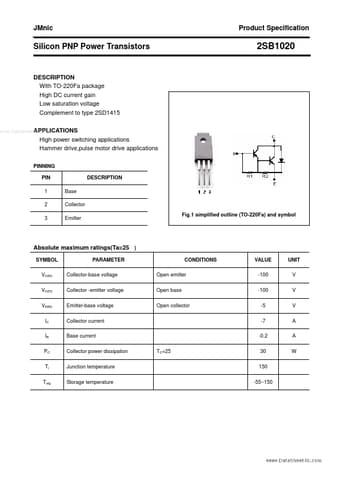

Preview of B1020 PDF

Datasheet Details

Part number:

B1020

Manufacturer:

JMnic

File Size:

66.52 KB

Description:

2sb1020.
