B1067 - 2SB1067

B1067 Description

2SB1067 TOSHIBA Transistor Silicon PNP Epitaxial Type (Darlington Power Transistor) 2SB1067 Micro-Moter Drive, Hammer Drive Applications Switching Ap.

B1067 Applications

* Switching Applications Power Amplifier Applications Industrial Applications Unit: mm
* High DC current gain: hFE = 2000 (min) (VCE =
* 2 V, IC =
* 1 A)
* Low saturation voltage: VCE (sat) =
* 1.5 V (max) (IC =
* 1 A, IB =
* 1 mA) Absolute Maximum

📥 Download Datasheet

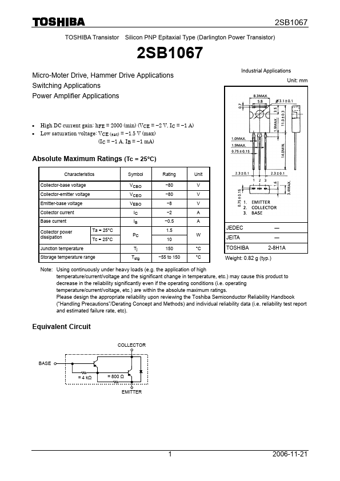

Preview of B1067 PDF
datasheet Preview Page 2 datasheet Preview Page 3
