HA13565F - Three-Phase Brushless DC Motor Driver IC

HA13565F Description

HA13565F Three-Phase Brushless DC Motor Driver IC ADE-207-226A (Z) 2nd.Edition April 1997 .
HA13565F is a 3-phase brushless DC motor driver IC with digital speed control.

HA13565F Features

* Functions
* 3 sensor 1.0A/phase, 3-phase drive circuit Digital speed control circuit Sensorless index circuit Current limiter circuit Over-temperature shutdown circuit (OTSD) Circuit for switching between 300 and 360rpm speeds Features

📥 Download Datasheet

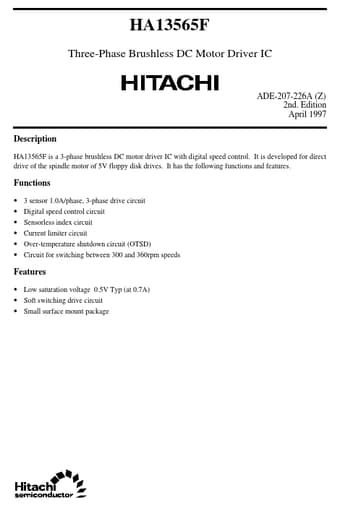

Preview of HA13565F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HA13565F
Manufacturer
Hitachi Semiconductor
File Size
62.99 KB
Datasheet
HA13565F_HitachiSemiconductor.pdf
Description
Three-Phase Brushless DC Motor Driver IC
