HA13566AF Datasheet - Hitachi Semiconductor

HA13566AF, Combo (Spindle & VCM) Driver

HA13566AF Combo (Spindle & VCM) Driver ADE-207-250 (Z) 1st Edition December 1997 .

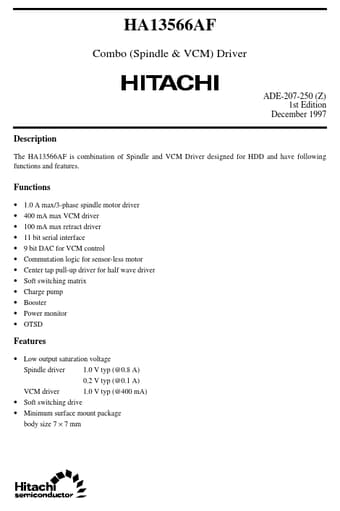

The HA13566AF is combination of Spindle and VCM Driver designed for HDD and have following functions and features.

datasheet Preview Page 1 from Datasheet4u.com

HA13566AF_HitachiSemiconductor.pdf

HA13566AF Datasheet Preview — Preview of HA13566AF PDF

Datasheet Details

Part number:

HA13566AF

Manufacturer:

Hitachi Semiconductor

File Size:

83.01 KB

Description:

Combo (Spindle & VCM) Driver

Features

* Functions
* 1.0 A max/3-phase spindle motor driver 400 mA max VCM driver 100 mA max retract driver 11 bit serial interface 9 bit DAC for VCM control Commutation logic for sensor-le
