HA13568AT - CD-ROM Combo Driver

HA13568AT Description

HA13568AT CD-ROM Combo Driver ADE-207-261A (Z) 2nd Edition December 1998 .
The HA13568AT is combination of Spindle, Forcus, Tracking, Slide, Tray designed for CD-ROM and have following functions and features.

HA13568AT Features

* Features
* 1.5 A sensorless spindle driver 0.5 A BTL focus driver 0.5 A BTL tracking driver 1.5 A H bridge slide motor driver 0.5 A H bridge tray motor driver Over temperature shut down (OTSD) Voltage regulator control circuit Fu

📥 Download Datasheet

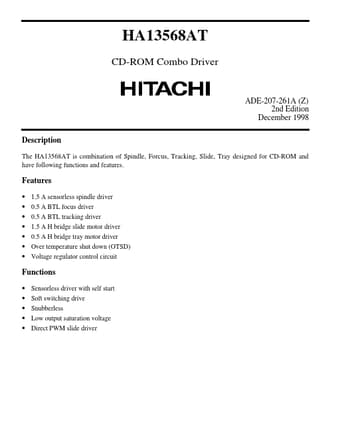

Preview of HA13568AT PDF
datasheet Preview Page 2 datasheet Preview Page 3
