HD66100D Datasheet, Outputs, Hitachi Semiconductor

HD66100D Features

• Outputs
• LCD driver with serial/parallel converting function
• Interface compatible with the HD44100H; connectable with HD43160AH, HD61830, HD61830B, LCD-II (HD44780), LCD-III

PDF File Details

Part number:

HD66100D

Manufacturer:

Hitachi Semiconductor

File Size:

111.27kb

Download:

📄 Datasheet

Description:

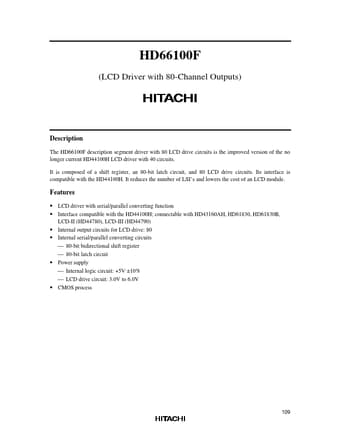

Lcd driver with 80-channel outputs. The HD66100F description segment driver with 80 LCD drive circuits is the improved version of the no longer current HD44100H LCD driv
