HD66130T

320-channel Low-voltage Segment Driver for Dot-Matrix STN Liquid Crystal Display

HD66130T Features

* Display duty: Up to 1/240 Liquid crystal drive voltage: 2.6 to 5.5 V Number of liquid crystal drive circuits: 320 circuits Operating voltage: 2.5 to 5.5 V Number of data

HD66130T General Description

The HD66130T is a 320-channel segment driver for driving a dot-matrix STN liquid-crystal panel at a low voltage. The driver can also correspond to 240-channel output by switching mode. It operates at a low voltage: a liquid-crystal drive voltage of 5 V and a logic drive voltage of 3 V, and is used t.

HD66130T Datasheet (64.99 KB)

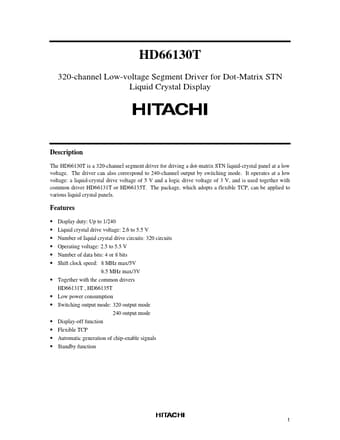

Preview of HD66130T PDF

Datasheet Details

Part number:

HD66130T

Manufacturer:

Hitachi Semiconductor

File Size:

64.99 KB

Description:

320-channel low-voltage segment driver for dot-matrix stn liquid crystal display.
