HD74BC563A - Octal D Type Transparent Latches With 3 State Outputs

Hitachi Semiconductor

The HD74BC563A by Hitachi Semiconductor is a Octal D Type Transparent Latches With 3 State Outputs. Below is the official datasheet preview.

📥 Download Datasheet

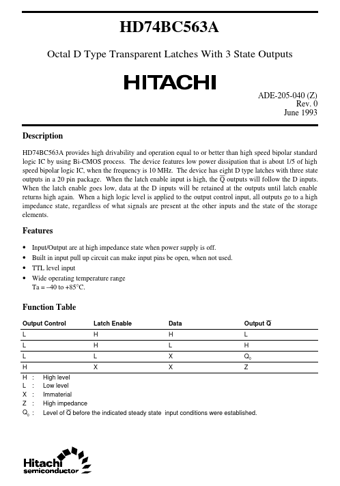

HD74BC563A Octal D Type Transparent Latches With 3 State Outputs by Hitachi Semiconductor - Datasheet Preview — Official preview page of the **HD74BC563A** Octal D Type Transparent Latches With 3 State Outputs datasheet (Hitachi Semiconductor).

Datasheet Details

Part number	HD74BC563A
Manufacturer	Hitachi Semiconductor
File Size	45.78 KB
Description	Octal D Type Transparent Latches With 3 State Outputs
Datasheet	HD74BC563A_HitachiSemiconductor.pdf
Additional preview pages of the HD74BC563A datasheet.

HD74BC563A Product details

Description

HD74BC563A provides high drivability and operation equal to or better than high speed bipolar standard logic IC by using Bi-CMOS process.

Features

low power dissipation that is about 1/5 of high speed bipolar logic IC, when the frequency is 10 MHz. The device has eight D type latches with three state outputs in a 20 pin package. When the latch enable input is high, the Q outputs will follow the D inputs. When the latch enable goes low, data at the D inputs will be retained at the outputs until latch enable returns high again. When a high logic level is applied to the output control input, all outputs go to a high impedance state, regardles.
