HD74BC564A - Octal D Type Flip Flops With 3 State Outputs

Hitachi Semiconductor

The HD74BC564A by Hitachi Semiconductor is a Octal D Type Flip Flops With 3 State Outputs. Below is the official datasheet preview.

Datasheet Details

Part number	HD74BC564A
Manufacturer	Hitachi Semiconductor
File Size	42.99 KB
Description	Octal D Type Flip Flops With 3 State Outputs
Datasheet	HD74BC564A_HitachiSemiconductor.pdf

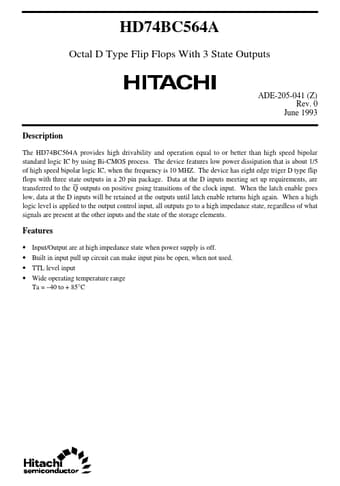

Additional preview pages of the HD74BC564A datasheet.

The HD74BC564A provides high drivability and operation equal to or better than high speed bipolar standard logic IC by using Bi-CMOS process.

low power dissipation that is about 1/5 of high speed bipolar logic IC, when the frequency is 10 MHZ. The device has eight edge triger D type flip flops with three state outputs in a 20 pin package. Data at the D inputs meeting set up requirements, are transferred to the Q outputs on positive going transitions of the clock input. When the latch enable goes low, data at the D inputs will be retained at the outputs until latch enable returns high again. When a high logic level is applied to the ou.
