HD74HC78 Datasheet, Clock), Hitachi Semiconductor

HD74HC78 Features

• Clock)
• High Speed Operation: tpd (Clock to Q) = 20 ns typ (CL = 50 pF) High Output Current: Fanout of 10 LSTTL Loads Wide Operating Voltage: V

PDF File Details

Part number:

HD74HC78

Manufacturer:

Hitachi Semiconductor

File Size:

59.69kb

Download:

📄 Datasheet

Description:

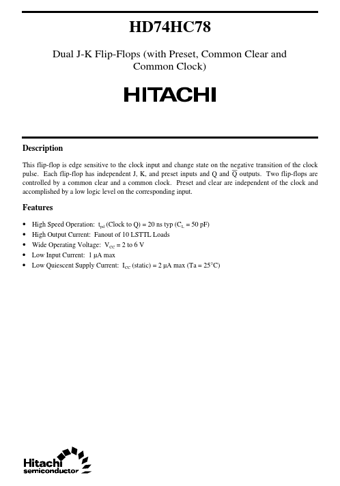

Dual j-k flip-flops (with preset/ common clear and common clock). This flip-flop is edge sensitive to the clock input and change state on the negative transition of the clock pulse. Each flip-flop ha
