HD74LV139A - Dual 2-to-4 line Decoder / Demultiplexers

Description

The HD74LV139A is designed to be used in high-performance memory-decoding or data-routing applications requiring very short propagation delay times.

The active-low enable input can be used as a data line in demultiplexing applications.

Features

  • fully buffered inputs, each of which represents only one normalized load to its driving circuit. Low-voltage and high-speed operation is suitable for the battery-powered products (e. g. , notebook computers), and the low-power consumption extends the battery life. Features.
  • VCC = 2.0 V to 5.5 V operation All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max. ) = 5.5 V (@VCC = 0 V) Typical VOL ground bounce < 0.8 V (@VCC =.

📥 Download Datasheet

Datasheet preview – HD74LV139A

Datasheet Details

Part number HD74LV139A
Manufacturer Hitachi Semiconductor
File Size 59.63 KB
Description Dual 2-to-4 line Decoder / Demultiplexers
Datasheet download datasheet HD74LV139A Datasheet
Additional preview pages of the HD74LV139A datasheet.

📁 Similar Datasheet

  • HD74LV139A - Dual 2-to-4-line Decoders / Demultiplexers (Renesas)
  • HD74LV132A - Quad. 2-input NAND Schmitt-triggers (Renesas)
  • HD74LV138A - 3-to-8-line Decoder / Demultiplexer (Renesas)
  • HD74LV10A - Triple 3-input Positive NAND Gates (Renesas)
  • HD74LV11A - Triple 3-input Positive AND Gates (Renesas)
  • HD74LV123A - Dual Retriggerable Monostable Multivibrators (Renesas)
  • HD74LV125A - Quad. Bus Buffer Gates (Renesas)
  • HD74LV126A - Quad. Bus Buffer Gates (Renesas)
  • HD74LV14A - Hex Schmitt-trigger Inverters (Renesas)
  • HD74LV157A - Quad. 2-to-1 line Data Selectors / Multiplexers (Renesas)
Other Datasheets by Hitachi Semiconductor
  • HD74LV132A - Quad. 2-input NAND Schmitt-triggers
  • HD74LV138A - 3-to-8 line Decoder / Demultiplexers
  • HD74LV10A - Triple 3-input Positive NAND Gates
  • HD74LV11A - Triple 3-input Positive AND Gates
  • HD74LV123A - Dual Retriggerable Monostable Multivibrators
  • HD74LV125A - Quad. Bus Buffer Gates with 3-state Outputs
  • HD74LV126A - Quad. Bus Buffer Gates with 3-state Outputs
  • HD74LV14A - Hex Schmitt-trigger Inverters

Full PDF Text Transcription

Click to expand full text

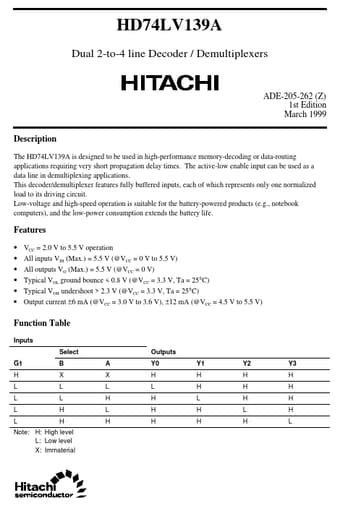

HD74LV139A Dual 2-to-4 line Decoder / Demultiplexers ADE-205-262 (Z) 1st Edition March 1999 Description The HD74LV139A is designed to be used in high-performance memory-decoding or data-routing applications requiring very short propagation delay times. The active-low enable input can be used as a data line in demultiplexing applications. This decoder/demultiplexer features fully buffered inputs, each of which represents only one normalized load to its driving circuit. Low-voltage and high-speed operation is suitable for the battery-powered products (e.g., notebook computers), and the low-power consumption extends the battery life. Features • • • • • • VCC = 2.0 V to 5.5 V operation All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max.) = 5.
