HD74LV161A - Synchronous 4-bit Binary Counter (Direct Clear)

Product Overview

Hitachi Semiconductor

📥 Download Datasheet

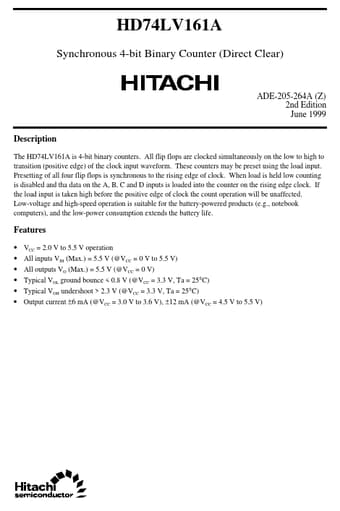

HD74LV161A Synchronous 4-bit Binary Counter (Direct Clear) by Hitachi Semiconductor - Datasheet Preview — Datasheet preview – HD74LV161A

Datasheet Details

Part number	HD74LV161A
Manufacturer	Hitachi Semiconductor
File Size	84.88 KB
Description	Synchronous 4-bit Binary Counter (Direct Clear)
Datasheet	HD74LV161A Datasheet
Additional preview pages of the HD74LV161A datasheet.

Product details

Description

The HD74LV161A is 4-bit binary counters.

Features

VCC = 2.0 V to 5.5 V operation All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max. ) = 5.5 V (@VCC = 0 V) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25°C) Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V) HD74LV161A Function Table Inputs CLR L H H H H H LOAD X L H H H X ENP X X X L H X ENT X X L X H X CLK X ↑ ↑ ↑ ↑ ↓ Outpu.
