HD74LV11A Datasheet, Gates, Hitachi Semiconductor

HD74LV11A Features

  • Gates
  • VCC = 2.0 V to 5.5 V operation All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max.) = 5.5 V (@VCC = 0 V)

PDF File Details

Part number:

HD74LV11A

Manufacturer:

Hitachi Semiconductor

File Size:

54.59kb

Download:

📄 Datasheet

Description:

Triple 3-input positive and gates. The HD74LV11A performs the Boolean functions Y = A

  • B
  • C or Y = A+ B + C in positive logic. Low-voltage and high-speed

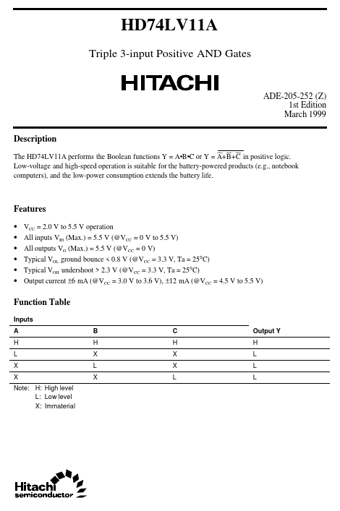

  • Datasheet Preview: HD74LV11A 📥 Download PDF (54.59kb)
