HD74LV161A Datasheet - Renesas

Synchronous 4-bit Binary Counter

HD74LV161A Features

* VCC = 2.0 V to 5.5 V operation

* All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)

* All outputs VO (Max.) = 5.5 V (@VCC = 0 V)

* Typica

HD74LV161A General Description

The HD74LV161A is 4-bit binary counters. All flip flops are clocked simultaneously on the low to high to transition (positive edge) of the clock input waveform. These counters may be preset using the load input. Presetting of all four flip flops is synchronous to the rising edge of clock. When load .

HD74LV161A Datasheet (107.65 KB)

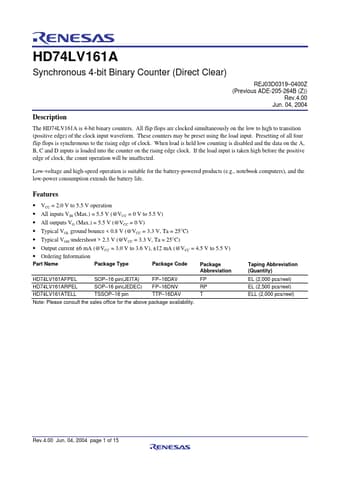

Preview of HD74LV161A PDF

Datasheet Details

Part number:

HD74LV161A

Manufacturer:

Renesas ↗

File Size:

107.65 KB

Description:

Synchronous 4-bit binary counter.
