HD74LV10A - Triple 3-input Positive NAND Gates

Product Overview

Hitachi Semiconductor

📥 Download Datasheet

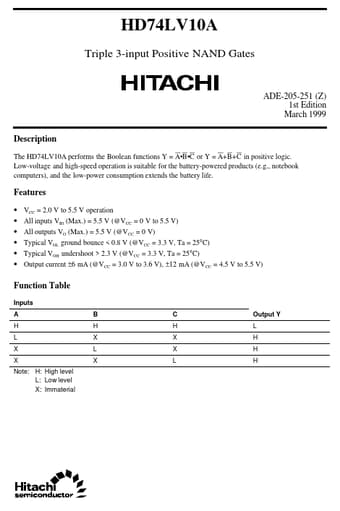

HD74LV10A Triple 3-input Positive NAND Gates by Hitachi Semiconductor - Datasheet Preview — Datasheet preview – HD74LV10A

Datasheet Details

Part number	HD74LV10A
Manufacturer	Hitachi Semiconductor
File Size	54.74 KB
Description	Triple 3-input Positive NAND Gates
Datasheet	HD74LV10A Datasheet
Additional preview pages of the HD74LV10A datasheet.

Product details

Description

The HD74LV10A performs the Boolean functions Y = A B C or Y = A+ B + C in positive logic.

Features

VCC = 2.0 V to 5.5 V operation All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max. ) = 5.5 V (@VCC = 0 V) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25°C) Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V) Function Table Inputs A H L X X Note: H: High level L: Low level X: Immaterial B H X L X C H X X L Output Y L H H H HD.
