HD74LV1G00A - 2-input NAND Gate

Product Overview

Renesas

📥 Download Datasheet

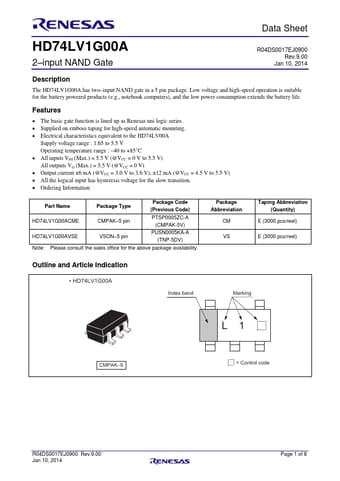

HD74LV1G00A 2-input NAND Gate by Renesas - Datasheet Preview — Datasheet preview – HD74LV1G00A

Datasheet Details

Part number	HD74LV1G00A
Manufacturer	Renesas
File Size	116.18 KB
Description	2-input NAND Gate
Datasheet	HD74LV1G00A Datasheet
Additional preview pages of the HD74LV1G00A datasheet.

Product details

Description

The HD74LV1G00A has two input NAND gate in a 5 pin package.

Features

The basic gate function is lined up as Renesas uni logic series.
Supplied on emboss taping for high-speed automatic mounting.
Electrical characteristics equivalent to the HD74LV00A Supply voltage range : 1.65 to 5.5 V Operating temperature range :.
40 to +85°C.
All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max. ) = 5.5 V (@VCC = 0 V).
Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V).
