HD74LV11A - Triple 3-input Positive AND Gates

Datasheet Summary

Description

The HD74LV11A performs the Boolean functions Y = A B

C or Y = A+B+C in positive logic.

Low-voltage and high-speed operation is suitable for the battery-powered products (e.g., notebook computers), and the low-power consumption extends the battery life.

Features

  • VCC = 2.0 V to 5.5 V operation.
  • All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V).
  • All outputs VO (Max. ) = 5.5 V (@VCC = 0 V).
  • Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C).
  • Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25°C).
  • Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V).
  • Ordering Information Part Name Package Type Package Code Package Abbreviation HD74LV11AFPEL SOP.

📥 Download Datasheet

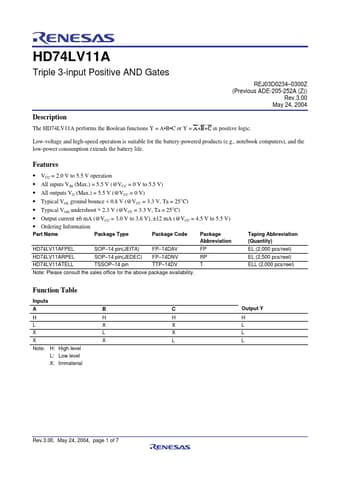

Datasheet preview – HD74LV11A

Datasheet Details

Part number HD74LV11A
Manufacturer Renesas
File Size 62.51 KB
Description Triple 3-input Positive AND Gates
Datasheet download datasheet HD74LV11A Datasheet
Additional preview pages of the HD74LV11A datasheet.

📁 Similar Datasheet

  • HD74LV11A - Triple 3-input Positive AND Gates (Hitachi Semiconductor)
  • HD74LV10A - Triple 3-input Positive NAND Gates (Hitachi Semiconductor)
  • HD74LV123A - Dual Retriggerable Monostable Multivibrators (Hitachi Semiconductor)
  • HD74LV125A - Quad. Bus Buffer Gates with 3-state Outputs (Hitachi Semiconductor)
  • HD74LV126A - Quad. Bus Buffer Gates with 3-state Outputs (Hitachi Semiconductor)
  • HD74LV132A - Quad. 2-input NAND Schmitt-triggers (Hitachi Semiconductor)
  • HD74LV138A - 3-to-8 line Decoder / Demultiplexers (Hitachi Semiconductor)
  • HD74LV139A - Dual 2-to-4 line Decoder / Demultiplexers (Hitachi Semiconductor)
  • HD74LV14A - Hex Schmitt-trigger Inverters (Hitachi Semiconductor)
  • HD74LV157A - Quad. 2-to-1 line Data Selectors / Multiplexers(Noninverted Outputs) (Hitachi Semiconductor)
Other Datasheets by Renesas

Full PDF Text Transcription

Click to expand full text
HD74LV11A Triple 3-input Positive AND Gates REJ03D0234–0300Z (Previous ADE-205-252A (Z)) Rev.3.00 May 24, 2004 Description The HD74LV11A performs the Boolean functions Y = A•B•C or Y = A+B+C in positive logic. Low-voltage and high-speed operation is suitable for the battery-powered products (e.g., notebook computers), and the low-power consumption extends the battery life. Features • VCC = 2.0 V to 5.5 V operation • All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) • All outputs VO (Max.) = 5.5 V (@VCC = 0 V) • Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) • Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25°C) • Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.
