HD74LV132A Datasheet, Schmitt-triggers, Hitachi Semiconductor

HD74LV132A Features

• Schmitt-triggers
• VCC = 2.0 V to 5.5 V operation All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max.) = 5.5 V (@VCC = 0 V)

PDF File Details

Part number:

HD74LV132A

Manufacturer:

Hitachi Semiconductor

File Size:

52.51kb

Download:

📄 Datasheet

Description:

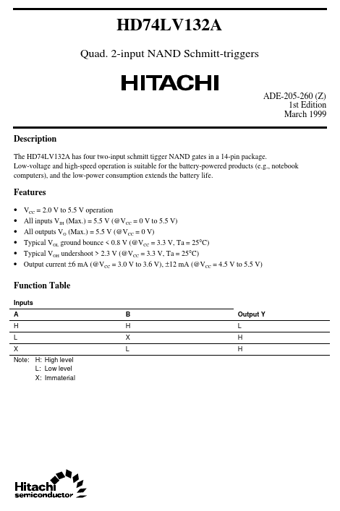

Quad. 2-input nand schmitt-triggers. The HD74LV132A has four two-input schmitt tigger NAND gates in a 14-pin package. Low-voltage and high-speed operation is suitable for
