HD74LV1G02A - 2-input NOR Gate

Product Overview

Renesas Technology

📥 Download Datasheet

HD74LV1G02A 2-input NOR Gate by Renesas Technology - Datasheet Preview — Datasheet preview – HD74LV1G02A

Datasheet Details

Part number	HD74LV1G02A
Manufacturer	Renesas Technology
File Size	123.58 KB
Description	2-input NOR Gate
Datasheet	HD74LV1G02A Datasheet
Additional preview pages of the HD74LV1G02A datasheet.

Product details

Description

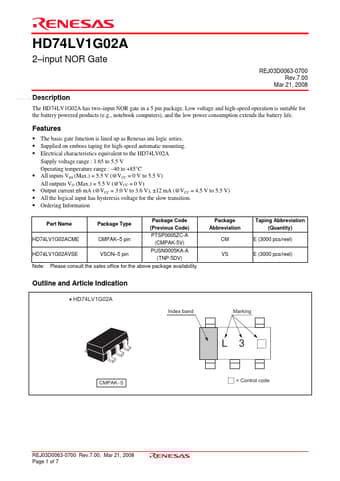

The HD74LV1G02A has two input NOR gate in a 5 pin package.

Features

The basic gate function is lined up as Renesas uni logic series.
Supplied on emboss taping for high-speed automatic mounting.
Electrical characteristics equivalent to the HD74LV02A Supply voltage range : 1.65 to 5.5 V Operating temperature range :.
40 to +85°C.
All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max. ) = 5.5 V (@VCC = 0 V).
Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V).
