HD74LV1G08A - 2-input AND Gate

Product Overview

Hitachi Semiconductor

Part number	HD74LV1G08A
Manufacturer	Hitachi Semiconductor
File Size	63.52 KB
Description	2-input AND Gate
Datasheet	HD74LV1G08A Datasheet

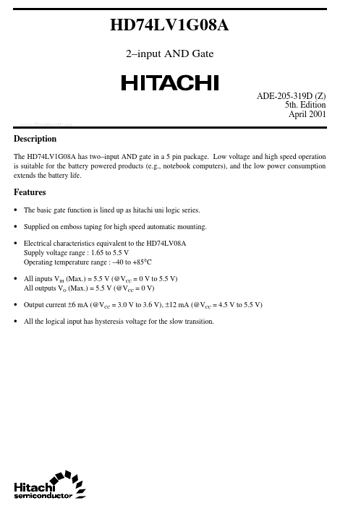

Additional preview pages of the HD74LV1G08A datasheet.

The HD74LV1G08A has two input AND gate in a 5 pin package.

The basic gate function is lined up as hitachi uni logic series.
Supplied on emboss taping for high speed automatic mounting.
Electrical characteristics equivalent to the HD74LV08A Supply voltage range : 1.65 to 5.5 V Operating temperature range :.
40 to +85°C.
All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max. ) = 5.5 V (@VCC = 0 V).
Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V).
