HD74LV1G04A - Inverter

Product Overview

Hitachi Semiconductor

Part number	HD74LV1G04A
Manufacturer	Hitachi Semiconductor
File Size	66.88 KB
Description	Inverter
Datasheet	HD74LV1G04A Datasheet

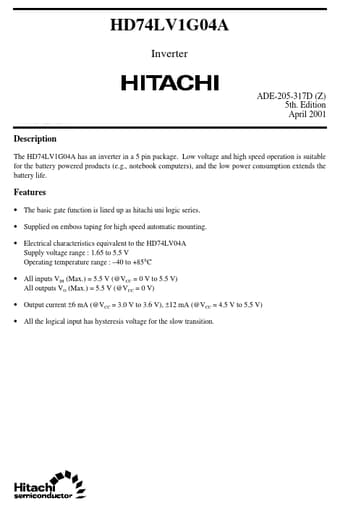

Additional preview pages of the HD74LV1G04A datasheet.

The HD74LV1G04A has an inverter in a 5 pin package.

The basic gate function is lined up as hitachi uni logic series.
Supplied on emboss taping for high speed automatic mounting.
Electrical characteristics equivalent to the HD74LV04A Supply voltage range : 1.65 to 5.5 V Operating temperature range :.
40 to +85°C.
All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max. ) = 5.5 V (@VCC = 0 V).
Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V).
