HD74LV1G66A - Analog Switch

Product Overview

Renesas Technology

📥 Download Datasheet

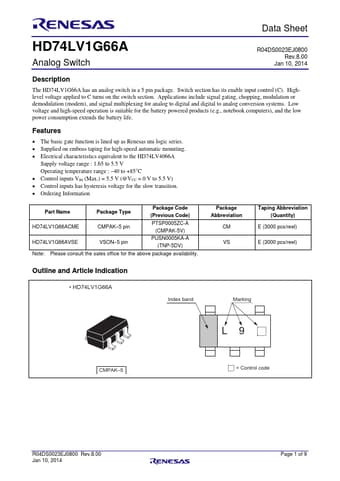

HD74LV1G66A Analog Switch by Renesas Technology - Datasheet Preview — Datasheet preview – HD74LV1G66A

Datasheet Details

Part number	HD74LV1G66A
Manufacturer	Renesas Technology
File Size	175.48 KB
Description	Analog Switch
Datasheet	HD74LV1G66A Datasheet
Additional preview pages of the HD74LV1G66A datasheet.

Product details

Description

The HD74LV1G66A has an analog switch in a 5 pin package.

Features

The basic gate function is lined up as Renesas uni logic series.
Supplied on emboss taping for high-speed automatic mounting.
Electrical characteristics equivalent to the HD74LV4066A Supply voltage range : 1.65 to 5.5 V Operating temperature range :.
40 to +85°C.
Control inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V).
Control inputs has hysteresis voltage for the slow transition.
Ordering Information Part Name Package Type Pac.
