HD74LV1G86A Datasheet - Renesas Technology

2-input ExclusiveOR Gate

HD74LV1G86A Features

* The basic gate function is lined up as Renesas uni logic series.

* Supplied on emboss taping for high-speed automatic mounting.

* Electrical characteristics equivalent to the HD74LV86A Supply voltage range : 1.65 to 5.5 V Operating temperature range :

* 40 to +85°C

HD74LV1G86A General Description

The HD74LV1G86A performs the Boolean functions Y = A ⊕ B or Y = AB + AB in positive logic. A common application is as a true / complement element. If one of the inputs is low, the other input will be reproduced in true form at the output. If one of the inputs is high, the signal on the other input w.

HD74LV1G86A Datasheet (110.51 KB)

HD74LV1G86A Datasheet Preview — Preview of HD74LV1G86A PDF

Datasheet Details

Part number:

HD74LV1G86A

Manufacturer:

Renesas ↗ Technology

File Size:

110.51 KB

Description:

2-input exclusiveor gate.

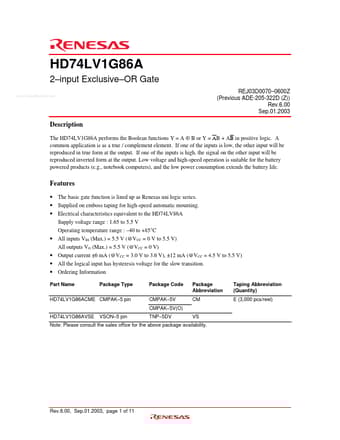

HD74LV1G86A 2 input Exclusive OR Gate www.DataSheet4U.net REJ03D0070 0600Z (Previous ADE-205-322D (Z)) Rev.6.00 Sep.01.2003 .
