HD74LV1G125A Datasheet - Hitachi Semiconductor

Bus Buffer Gate

HD74LV1G125A Features

* The basic gate function is lined up as hitachi uni logic series.

* Supplied on emboss taping for high speed automatic mounting.

* Electrical characteristics equivalent to the HD74LV125A Supply voltage range : 1.65 to 5.5 V Operating temperature range :

* 40 to +85°C

HD74LV1G125A General Description

The HD74LV1G125A has a bus buffer gate with 3 *state output in a 5 pin package. Output is disabled when the associated output enable (OE) input is high. To ensure the high impedance state during power up or power down, OE should be connected to VCC through a pull-down resistor; the minimum va.

HD74LV1G125A Datasheet (77.12 KB)

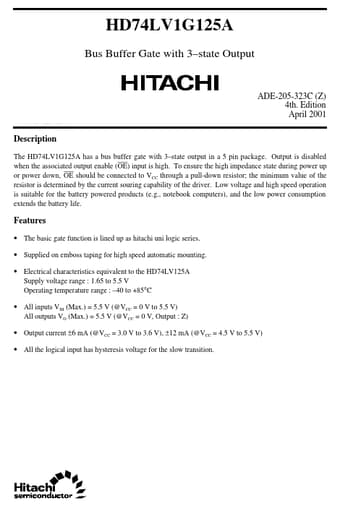

HD74LV1G125A Datasheet Preview — Preview of HD74LV1G125A PDF

Datasheet Details

Part number:

HD74LV1G125A

Manufacturer:

Hitachi Semiconductor

File Size:

77.12 KB

Description:

Bus buffer gate.
