HD74LV1G126A - Bus Buffer Gate

Product Overview

Renesas Technology

📥 Download Datasheet

HD74LV1G126A Bus Buffer Gate by Renesas Technology - Datasheet Preview — Datasheet preview – HD74LV1G126A

Datasheet Details

Part number	HD74LV1G126A
Manufacturer	Renesas Technology
File Size	132.25 KB
Description	Bus Buffer Gate
Datasheet	HD74LV1G126A Datasheet

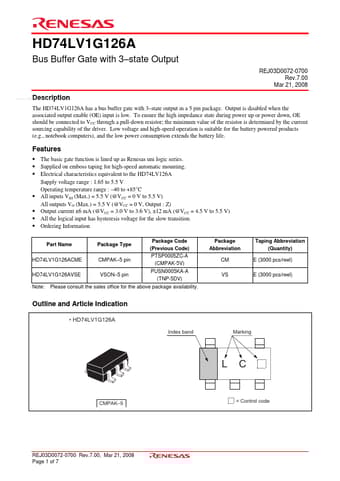

Additional preview pages of the HD74LV1G126A datasheet.

Product details

Description

The HD74LV1G126A has a bus buffer gate with 3 state output in a 5 pin package.

Features

The basic gate function is lined up as Renesas uni logic series.
Supplied on emboss taping for high-speed automatic mounting.
Electrical characteristics equivalent to the HD74LV126A Supply voltage range : 1.65 to 5.5 V Operating temperature range :.
40 to +85°C.
All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max. ) = 5.5 V (@VCC = 0 V, Output : Z).
Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5.
