HD74LV163A Datasheet - Renesas

Synchronous 4-bit Binary Counter

HD74LV163A Features

* VCC = 2.0 V to 5.5 V operation

* All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)

* All outputs VO (Max.) = 5.5 V (@VCC = 0 V)

* T

HD74LV163A General Description

The HD74LV163A is 4-bit binary counters. All flip flops are clocked simultaneously on the low to high to transition (positive edge) of the clock input waveform. These counters may be preset using the load input. Presetting of all four flip flops is synchronous to the rising edge of clock. When load .

HD74LV163A Datasheet (101.61 KB)

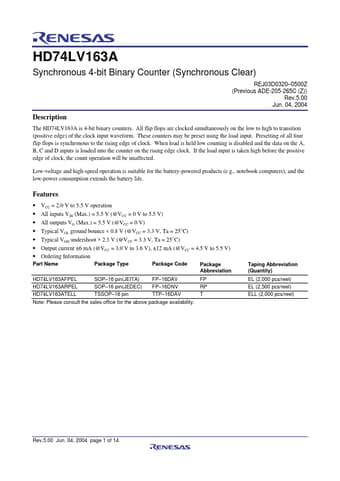

HD74LV163A Datasheet Preview — Preview of HD74LV163A PDF

Datasheet Details

Part number:

HD74LV163A

Manufacturer:

Renesas ↗

File Size:

101.61 KB

Description:

Synchronous 4-bit binary counter.
HD74LV163A Synchronous 4-bit Binary Counter (Synchronous Clear) REJ03D0320 0500Z (Previous ADE-205-265C (Z)) Rev.5.00 Jun. 04, 2004 Descriptio.
