HD74LV10A - Triple 3-input Positive NAND Gates

Datasheet Summary

Description

The HD74LV10A performs the Boolean functions Y = A B

C or Y = A+B+C in positive logic.

Low-voltage and high-speed operation is suitable for the battery-powered products (e.g., notebook computers), and the low-power consumption extends the battery life.

Features

  • VCC = 2.0 V to 5.5 V operation.
  • All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V).
  • All outputs VO (Max. ) = 5.5 V (@VCC = 0 V).
  • Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C).
  • Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25°C).
  • Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V).
  • Ordering Information Part Name Package Type Package Code Package Abbreviation HD74LV10AFPEL SOP.

📥 Download Datasheet

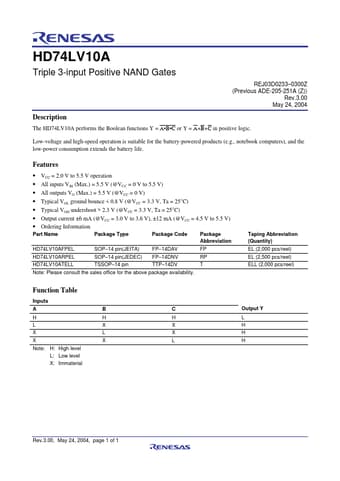

Datasheet preview – HD74LV10A
