HM628512C - 4 M SRAM (512-kword x 8-bit)

Datasheet Summary

Description

The Hitachi HM628512C is a 4-Mbit static RAM organized 512-kword × 8-bit.

It realizes higher density, higher performance and low power consumption by employing Hi-CMOS process technology.

Features

  • Single 5 V supply.
  • Access time: 55/70 ns (max).
  • Power dissipation  Active: 50 mW/MHz (typ)  Standby: 10 µW (typ).
  • Completely static memory. No clock or timing strobe required.
  • Equal access and cycle times.
  • Common data input and output: Three state output.
  • Directly TTL compatible: All inputs and outputs.
  • Battery backup operation Preliminary: The specification of this device are subject to change without notice. Please con.

📥 Download Datasheet

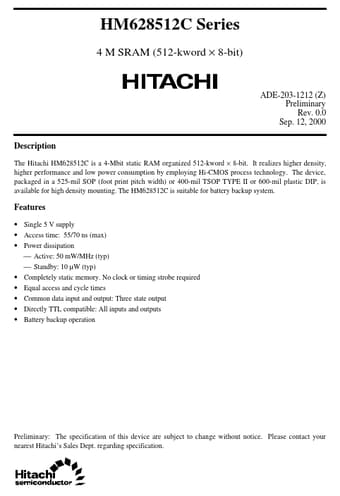

Datasheet preview – HM628512C

Datasheet Details

Part number HM628512C
Manufacturer Hitachi Semiconductor
File Size 84.31 KB
Description 4 M SRAM (512-kword x 8-bit)
Datasheet download datasheet HM628512C Datasheet
Additional preview pages of the HM628512C datasheet.

📁 Similar Datasheet

  • HM6281 - 400KHz 32V 2A Switching Current Boost LED Constant Current Driver (H&M Semiconductor)
  • HM628100I - 8M SRAM (Renesas)
  • HM628128D - 1M SRAM (Hitachi)
  • HM62832 - 8-bit CMOS Static RAM (Hitachi)
  • HM62832H - 32768-word x 8-bit High Speed CMOS Static RAM (Hitachi)
  • HM6286 - 180KHz 60V 5A Switching Current Boost LED Constant Current Driver (H&M semi)
  • HM62864 - High Speed CMOS Static RAM (Hitachi)
  • HM6287 - High Speed CMOS Static RAM (Hitachi)
  • HM6287LP - High Speed CMOS Static RAM (Hitachi)
  • HM6287P - High Speed CMOS Static RAM (Hitachi)
Other Datasheets by Hitachi Semiconductor
  • HM628512CI - Wide Temperature Range Version 4 M SRAM (512-kword x 8-bit)
  • HM628512 - 4 M SRAM (512-kword x 8-bit)
  • HM628512A - 4M SRAM (512 KWORD X 8 BIT)
  • HM628512AI - 524288 x 8-Bit High Speed CMOS SRAM
  • HM628512B - 4 M SRAM (512-kword x 8-bit)
  • HM628512BFP - 4 M SRAM (512-kword x 8-bit)
  • HM628512BI - 4 M SRAM (512-kword x 8-bit)
  • HM628511H - 4M High Speed SRAM (512-kword x 8-bit)

Full PDF Text Transcription

Click to expand full text
HM628512C Series 4 M SRAM (512-kword × 8-bit) ADE-203-1212 (Z) Preliminary Rev. 0.0 Sep. 12, 2000 Description The Hitachi HM628512C is a 4-Mbit static RAM organized 512-kword × 8-bit. It realizes higher density, higher performance and low power consumption by employing Hi-CMOS process technology. The device, packaged in a 525-mil SOP (foot print pitch width) or 400-mil TSOP TYPE II or 600-mil plastic DIP, is available for high density mounting. The HM628512C is suitable for battery backup system. Features • Single 5 V supply • Access time: 55/70 ns (max) • Power dissipation  Active: 50 mW/MHz (typ)  Standby: 10 µW (typ) • Completely static memory.
