HM628512B - 4 M SRAM (512-kword x 8-bit)

Product Overview

Hitachi Semiconductor

Part number	HM628512B
Manufacturer	Hitachi Semiconductor
File Size	85.93 KB
Description	4 M SRAM (512-kword x 8-bit)
Datasheet	HM628512B Datasheet

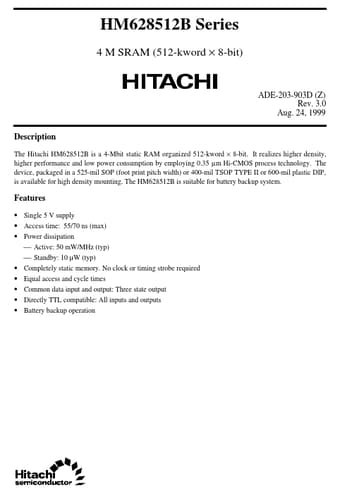

Additional preview pages of the HM628512B datasheet.

The Hitachi HM628512B is a 4-Mbit static RAM organized 512-kword × 8-bit.

Single 5 V supply.
Access time: 55/70 ns (max).
Power dissipation  Active: 50 mW/MHz (typ)  Standby: 10 µW (typ).
Completely static memory. No clock or timing strobe required.
Equal access and cycle times.
Common data input and output: Three state output.
Directly TTL compatible: All inputs and outputs.
Battery backup operation HM628512B Series Ordering Information Type No. HM628512BLP-5 HM628512BLP-7 HM628512BLP-5SL HM6.
