HM628512BFP - 4 M SRAM (512-kword x 8-bit)

Product Overview

Hitachi Semiconductor

Part number	HM628512BFP
Manufacturer	Hitachi Semiconductor
File Size	58.06 KB
Description	4 M SRAM (512-kword x 8-bit)
Datasheet	HM628512BFP Datasheet

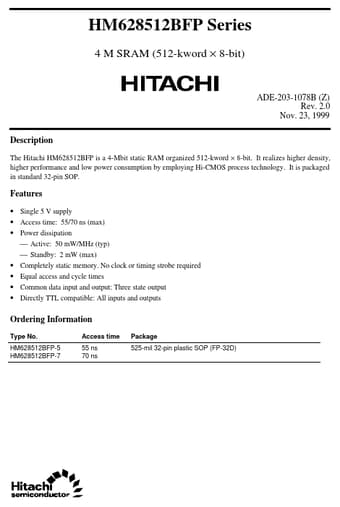

Additional preview pages of the HM628512BFP datasheet.

The Hitachi HM628512BFP is a 4-Mbit static RAM organized 512-kword × 8-bit.

Single 5 V supply.
Access time: 55/70 ns (max).
Power dissipation  Active: 50 mW/MHz (typ)  Standby: 2 mW (max).
Completely static memory. No clock or timing strobe required.
Equal access and cycle times.
Common data input and output: Three state output.
Directly TTL compatible: All inputs and outputs Ordering Information Type No. HM628512BFP-5 HM628512BFP-7 Access time 55 ns 70 ns Package 525-mil 32-pin plastic SOP (FP-32D) HM6.
