HM62V16256B - 4 M SRAM (256-kword x 16-bit)

Product Overview

Hitachi Semiconductor

Part number	HM62V16256B
Manufacturer	Hitachi Semiconductor
File Size	78.14 KB
Description	4 M SRAM (256-kword x 16-bit)
Datasheet	HM62V16256B Datasheet

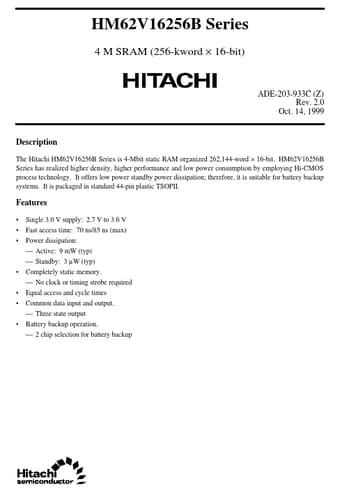

Additional preview pages of the HM62V16256B datasheet.

The Hitachi HM62V16256B Series is 4-Mbit static RAM organized 262,144-word × 16-bit.

Single 3.0 V supply: 2.7 V to 3.6 V Fast access time: 70 ns/85 ns (max) Power dissipation:  Active: 9 mW (typ)  Standby: 3 µW (typ) Completely static memory.  No clock or timing strobe required Equal access and cycle times Common data input and output.  Three state output Battery backup operation.  2 chip selection for battery backup.
HM62V16256B Series Ordering Information Type No. HM62V16256BLTT-7 HM62V16256BLTT-8 HM62.
