HM62V16256C - 4 M SRAM (256-kword x 16-bit)

Product Overview

Hitachi Semiconductor

Part number	HM62V16256C
Manufacturer	Hitachi Semiconductor
File Size	76.99 KB
Description	4 M SRAM (256-kword x 16-bit)
Datasheet	HM62V16256C Datasheet

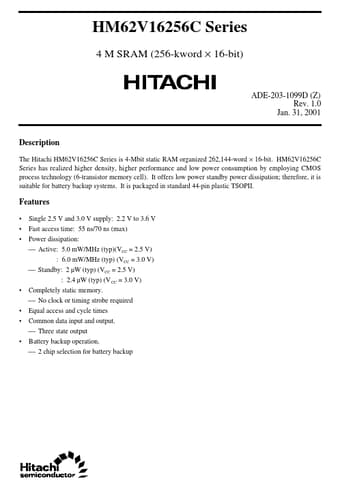

Additional preview pages of the HM62V16256C datasheet.

The Hitachi HM62V16256C Series is 4-Mbit static RAM organized 262,144-word × 16-bit.

Single 2.5 V and 3.0 V supply: 2.2 V to 3.6 V Fast access time: 55 ns/70 ns (max) Power dissipation:  Active: 5.0 mW/MHz (typ)(VCC = 2.5 V) : 6.0 mW/MHz (typ) (VCC = 3.0 V)  Standby: 2 µW (typ) (VCC = 2.5 V) : 2.4 µW (typ) (V CC = 3.0 V) Completely static memory.  No clock or timing strobe required Equal access and cycle times Common data input and output.  Three state output Battery backup operation.  2 chip selection for battery backup.
