HVM14S - Silicon Epitaxial Planar PIN Diode for High Frequency Attenuator

Datasheet Summary

Features

  • Low forward resistance. (rf =7.0Ωmax).
  • Low capacitance. (C=0.25pF typ).
  • MPAK package is suitable for high density surface mounting and high speed assembly. Ordering Information Type No. HVM14S Laser Mark H6 Package Code MPAK Outline 3 2 1 1 Cathode2 2 Anode1 3 Cathode1 Anode2 (Top View) HVM14S Absolute Maximum Ratings (Ta = 25°C) Item Reverse voltage Forward current Power dissipation Junction temperature Storage temperature Note: Symbol VR IF Pd Tj Tstg.
  • 1.

📥 Download Datasheet

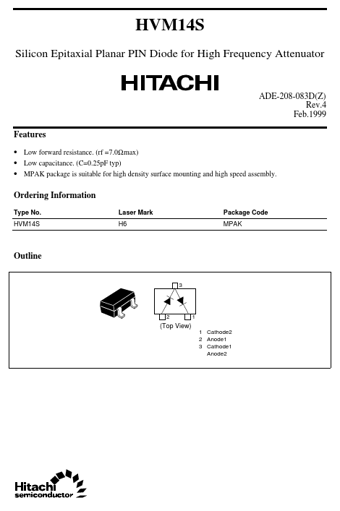

Datasheet preview – HVM14S

Datasheet Details

Part number HVM14S
Manufacturer Hitachi Semiconductor
File Size 28.36 KB
Description Silicon Epitaxial Planar PIN Diode for High Frequency Attenuator
Datasheet download datasheet HVM14S Datasheet
Additional preview pages of the HVM14S datasheet.

📁 Similar Datasheet

  • HVM14 - HIGH VOLTAGE ASSEMBLIED RECTIFIER (Rectron Semiconductor)
  • HVM14 - TECHNICAL SPECIFICATIONS OF HIGH VOLTAGE ASSEMBLIED RECTIFIER (Dc Components)
  • HVM14 - 0.35 & 0.45AMPS.HIGH VOLTAGE ASSEMBLIED RECTIFIER (YFD)
  • HVM14 - High Voltage Diode (SunMate)
  • HVM14L - HIGH VOLTAGE ASSEMBLIED RECTIFIER (Rectron)
  • HVM10 - HIGH VOLTAGE ASSEMBLIED RECTIFIER (Rectron Semiconductor)
  • HVM10 - TECHNICAL SPECIFICATIONS OF HIGH VOLTAGE ASSEMBLIED RECTIFIER (Dc Components)
  • HVM10 - 0.35 & 0.45AMPS.HIGH VOLTAGE ASSEMBLIED RECTIFIER (YFD)
  • HVM10 - High Voltage Diode (SunMate)
  • HVM10 - HIGH VOLTAGE SILICON RECTIFIER (MIC)
Other Datasheets by Hitachi Semiconductor
  • HVM14SR - Silicon Epitaxial Planar PIN Diode for High Frequency Attenuator
  • HVM14 - Silicon Epitaxial Planar PIN Diode for High Frequency Attenuator
  • HVM16 - Variable Capacitance Diode for FM tuner
  • HVM187S - Silicon Epitaxial Planar PIN Diode for High Frequency Attenuator
  • HVM187WK - Silicon Epitaxial Planar PIN Diode for High Frequency Attenuator
  • HVM27WK - Variable Capacitance Diode for FM tuner

Full PDF Text Transcription

Click to expand full text
HVM14S Silicon Epitaxial Planar PIN Diode for High Frequency Attenuator ADE-208-083D(Z) Rev.4 Feb.1999 Features • Low forward resistance. (rf =7.0Ωmax) • Low capacitance. (C=0.25pF typ) • MPAK package is suitable for high density surface mounting and high speed assembly. Ordering Information Type No. HVM14S Laser Mark H6 Package Code MPAK Outline 3 2 1 1 Cathode2 2 Anode1 3 Cathode1 Anode2 (Top View) HVM14S Absolute Maximum Ratings (Ta = 25°C) Item Reverse voltage Forward current Power dissipation Junction temperature Storage temperature Note: Symbol VR IF Pd Tj Tstg *1 Value 50 50 100 125 -55to+125 Unit V mA mW °C °C 1. Two device total.
