HVM11 - Variable Capacitance Diode

Datasheet Summary

Features

  • Pin Arrangement.
  • Low capacitance, high S/N.
  • MPAK package is suitable for high density surface mounting and high speed assembly. 3 Ordering Information Type No. HVM11 Laser Mark T4 Package Code MPAK 21 (Top View) 1 NC 2 Anode 3 Cathode Absolute Maximum Ratings (Ta = 25°C) Item Reverse voltage Junction temperature Storage temperature Symbol VR Tj Tstg Value 35 125 -55 to +125 Unit V °C °C Electrical Characteristics (Ta = 25°C) Item Reverse voltage Reverse current.

📥 Download Datasheet

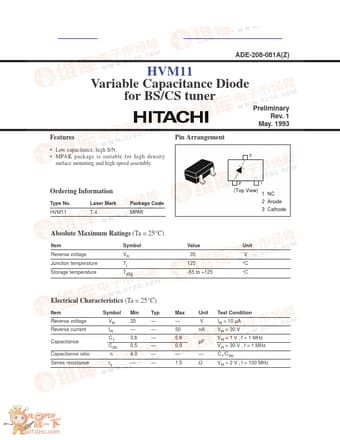

Datasheet preview – HVM11

Datasheet Details

Part number HVM11
Manufacturer Hitachi
File Size 136.78 KB
Description Variable Capacitance Diode
Datasheet download datasheet HVM11 Datasheet
Additional preview pages of the HVM11 datasheet.

📁 Similar Datasheet

  • HVM10 - HIGH VOLTAGE ASSEMBLIED RECTIFIER (Rectron Semiconductor)
  • HVM10 - TECHNICAL SPECIFICATIONS OF HIGH VOLTAGE ASSEMBLIED RECTIFIER (Dc Components)
  • HVM10 - 0.35 & 0.45AMPS.HIGH VOLTAGE ASSEMBLIED RECTIFIER (YFD)
  • HVM10 - High Voltage Diode (SunMate)
  • HVM10 - HIGH VOLTAGE SILICON RECTIFIER (MIC)
  • HVM10L - HIGH VOLTAGE ASSEMBLIED RECTIFIER (Rectron)
  • HVM12 - HIGH VOLTAGE ASSEMBLIED RECTIFIER (Rectron Semiconductor)
  • HVM12 - TECHNICAL SPECIFICATIONS OF HIGH VOLTAGE ASSEMBLIED RECTIFIER (Dc Components)
  • HVM12 - 0.35 & 0.45AMPS.HIGH VOLTAGE ASSEMBLIED RECTIFIER (YFD)
  • HVM12 - High Voltage Diode (SunMate)
Other Datasheets by Hitachi

    Full PDF Text Transcription

    Click to expand full text
    ADE-208-081A(Z) HVM11 Variable Capacitance Diode for BS/CS tuner Preliminary Rev. 1 May. 1993 Features Pin Arrangement • Low capacitance, high S/N. • MPAK package is suitable for high density surface mounting and high speed assembly. 3 Ordering Information Type No. HVM11 Laser Mark T4 Package Code MPAK 21 (Top View) 1 NC 2 Anode 3 Cathode Absolute Maximum Ratings (Ta = 25°C) Item Reverse voltage Junction temperature Storage temperature Symbol VR Tj Tstg Value 35 125 -55 to +125 Unit V °C °C Electrical Characteristics (Ta = 25°C) Item Reverse voltage Reverse current Capacitance Capacitance ratio Series resistance Symbol VR IR C1 C30 n rs Min 35 — 3.6 0.5 4.0 — Typ — — — — — — Max Unit Test Condition — V IR = 10 µA 50 nA VR = 30 V 5.6 pF VR = 1 V , f = 1 MHz 0.
