M61006FP

DISTANCE DETECTION SIGNAL PROCESSING FOR 3 V SUPPLY VOLTAGE

M61006FP Features

* Wide supply voltage range: Vcc = 2.2 to 5.5 V

* Including clamp level switching circuit (It is possible to set a clamp level to 15 points with outside control.)

* Including infinity discrimination function (clamp on detection function)

* Including POWER ON RESET fun

M61006FP General Description

M61006FP is a semiconductor integrated circuit including distance detection signal processing circuit for 3 V supply voltage. This device transforms each optical inflow current I1 and I2 from PSD SENSOR into the voltage, and integrates the output after doing calculation corresponds to I1 / (I1+I2), .

M61006FP Datasheet (469.79 KB)

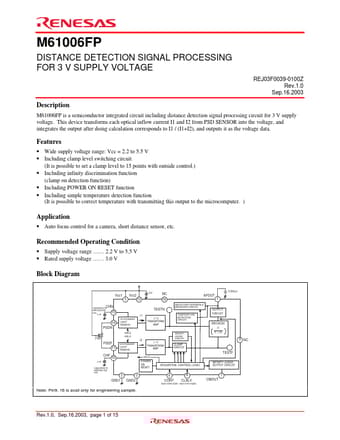

Preview of M61006FP PDF

Datasheet Details

Part number:

M61006FP

Manufacturer:

Hitachi Semiconductor

File Size:

469.79 KB

Description:

Distance detection signal processing for 3 v supply voltage.
