M61042FP

4-Battery Version / No Reset Pin

M61042FP Features

* On-chip high-gain op-amp for monitoring charge and discharge current. On-chip overcurrent detect circuit to protect FET. Charge/discharge FET can be controlled from microprocessor. Power-save function for reducing current consumption. 3.3 V

M61042FP General Description

The M61042FP is an semiconductor IC device developed for smart battery packs. It incorporates all the analog circuitry required by smart batteries in a single chip. When used in conjunction with a microprocessor, it allows the implementation of a variety of functions, such as battery capacity detect.

M61042FP Datasheet (324.02 KB)

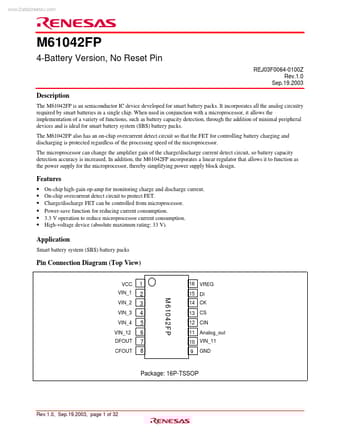

Preview of M61042FP PDF

Datasheet Details

Part number:

M61042FP

Manufacturer:

Renesas ↗ Technology

File Size:

324.02 KB

Description:

4-battery version / no reset pin.
