M61044FP Datasheet - Renesas Technology

M61044FP - 3-Battery Version

The M61044FP is an semiconductor IC device developed for smart battery packs.

It incorporates all the analog circuitry required by smart batteries in a single chip.

When used in conjunction with a microprocessor, it allows the implementation of a variety of functions, such as battery capacity detect

M61044FP Features

* On-chip high-gain op-amp for monitoring charge and discharge current. On-chip overcurrent detect circuit to protect FET. Charge/discharge FET can be controlled from microprocessor. Power-save function for reducing current consumption. 3.3 V

M61044FP_RenesasTechnology.pdf

Preview of M61044FP PDF

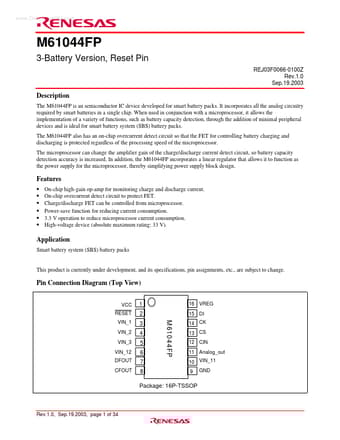

M61044FP Datasheet Preview Page 2 M61044FP Datasheet Preview Page 3

Datasheet Details

Part number:

M61044FP

Manufacturer:

Renesas ↗ Technology

File Size:

315.71 KB

Description:

3-battery version.
