M61251AFP Datasheet - Renesas Technology

M61251AFP Single-chip NTSC TV signal processor

The M61251AFP is a single-chip TV-signal processor IC for the NTSC format and is ideal for use in combination with a microcomputer. Processing circuits for all signals, including intermediate-frequency video and audio, video, color, the on-screen display of characters, and the deflection system are .

M61251AFP Features

* Handling of VIF does not require a VCO coil Adjustment-free audio demodulator PLL-SPLIT SIF system with FM radio function Supports component video-signal input

M61251AFP_RenesasTechnology.pdf

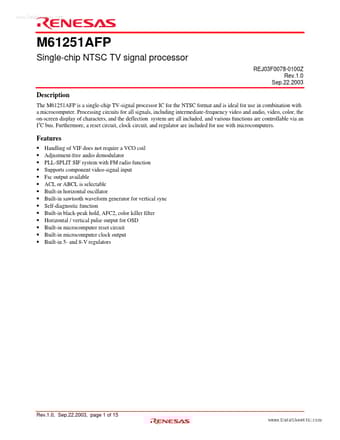

Preview of M61251AFP PDF
M61251AFP Datasheet Preview Page 2 M61251AFP Datasheet Preview Page 3

Datasheet Details

Part number:

M61251AFP

Manufacturer:

Renesas ↗ Technology

File Size:

340.68 KB

Description:

Single-chip ntsc tv signal processor.
