M61041FP

4-Battery Version

M61041FP Features

* On-chip high-gain op-amp for monitoring charge and discharge current. On-chip overcurrent detect circuit to protect FET. Charge/discharge FET can be controlled from microprocessor. Power-save function for reducing current consumption. 5.2 V

M61041FP General Description

The M61041FP is an semiconductor IC device developed for smart battery packs. It incorporates all the analog circuitry required by smart batteries in a single chip. When used in conjunction with a microprocessor, it allows the implementation of a variety of functions, such as battery capacity detect.

M61041FP Datasheet (423.21 KB)

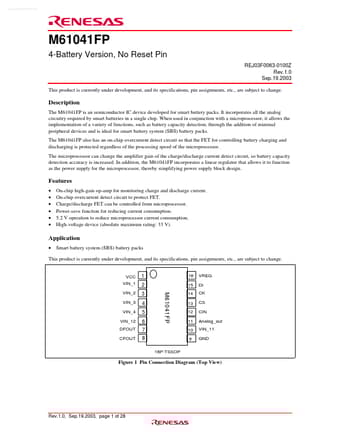

Preview of M61041FP PDF

Datasheet Details

Part number:

M61041FP

Manufacturer:

Renesas ↗ Technology

File Size:

423.21 KB

Description:

4-battery version.
www.DataSheet4U.com M61041FP 4-Battery Version, No Reset Pin REJ03F0063-0100Z Rev.1.0 Sep.19.2003 This product is currently under development, and it.
