M61047FP Datasheet - Renesas Technology

Battery Protection Analog Front End (AFE) IC

M61047FP Features

* All FETs are controlled by microcomputer Built-in low dropout series regulator for microcomputer Built-in battery voltage monitor circuit of each battery cell Built-in output selector, which

M61047FP General Description

The M61047FP is intended to be used as SB: Smart Battery. All functions needed for SB are packed to this M61047FP. The combination use with microcomputer such as M37517 will give various functions such as a detection of SB Remaining Capacity. The reset circuit and the linear regulator for Vcc/Vref o.

M61047FP Datasheet (329.50 KB)

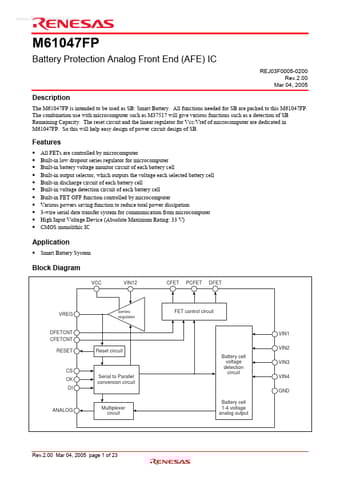

Preview of M61047FP PDF

Datasheet Details

Part number:

M61047FP

Manufacturer:

Renesas ↗ Technology

File Size:

329.50 KB

Description:

Battery protection analog front end (afe) ic.
