M61101FP - PLL VIF/SIF TV Tuner

Product Overview

Renesas Technology

Datasheet Details

Part number	M61101FP
Manufacturer	Renesas Technology
File Size	768.79 KB
Description	PLL VIF/SIF TV Tuner
Datasheet	M61101FP Datasheet
Additional preview pages of the M61101FP datasheet.

Product details

Description

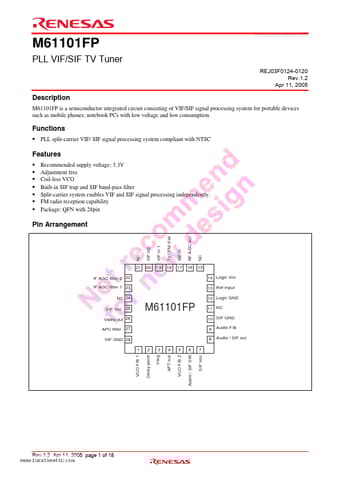

M61101FP is a semiconductor integrated circuit consisting of VIF/SIF signal processing system for portable devices such as mobile phones, notebook PCs with low voltage and low consumption. PLL split-carrier VIF/ SIF signal processing system compliant with NTSC

Features

Recommended supply voltage: 3.3V Adjustment free Coil-less VCO Built-in SIF trap and SIF band-pass filter Split-carrier system enables VIF and SIF signal processing independently. FM radio reception capability Package: QFN with 28pin Pin Arrangement RF AGC out 16 TV / FM SW VIF in 1 VIF in2 SIF in NC 21 IF AGC filter 2 22 IF AGC filter 1 23 NC 24 VIF Vcc 25 Video out 26 APC filter 27 VIF GND 28 1 VCO F/B 1 20 19 18 1.
