M61203CFP - NTSC TV SIGNAL PROCESSOR

The M61203CFP is desinged to provide a solution to NTSC color television system.

It is an I C bus controlled NTSC 1 chip.

It consists of various processing blocks such as power supply, video IF, sound IF, luminance, chrominance, OSD display, interface, H and V deflection.

2 2 At each block, I C cont

M61203CFP Features

* Various signal output for Intelligent Monitoring function Alignment-free sound demodulator Built-in H OSC resonator Built-in sync sep.(auto-slicer type) Built-in black peak hold capacitor ACL / ABCL Vertical count-down circuit Built-in vertical saw tooth generator Mute filter integrated PLL-SPLIT SI

M61203CFP_MitsubishiElectricSemiconductor.pdf

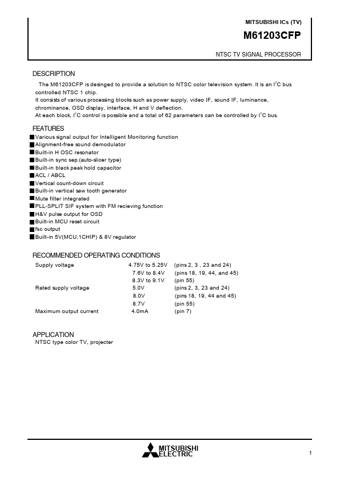

Preview of M61203CFP PDF
M61203CFP Datasheet Preview Page 2 M61203CFP Datasheet Preview Page 3

Datasheet Details

Part number:

M61203CFP

Manufacturer:

Mitsubishi

File Size:

786.08 KB

Description:

Ntsc tv signal processor.
