Part number:
2SC4692
Manufacturer:
Hitachi
File Size:
30.25 KB
Description:

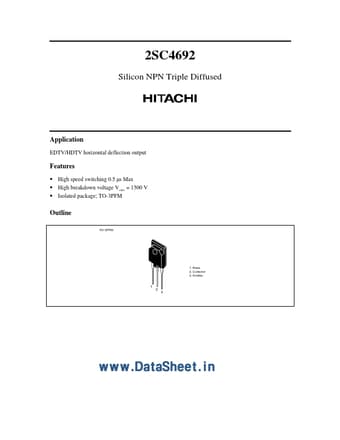

Silicon npn triple diffused planar transistor.
* High speed switching 0.5 µs Max
* High breakdown voltage VCBO = 1500 V
* Isolated package; TO-3PFM Outline TO-3PFM 1. Base 2. Collector 3. Emitter 1 2 3 2SC4692 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to
2SC4692
Hitachi
30.25 KB
Silicon npn triple diffused planar transistor.
