Part number:
2SC4693
Manufacturer:
Hitachi Semiconductor
File Size:
30.01 KB
Description:
Npn transistor.

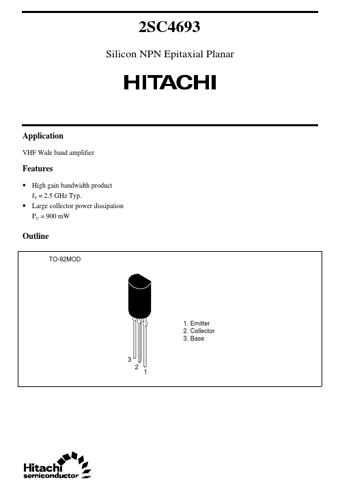

* High gain bandwidth product fT = 2.5 GHz Typ.
* Large collector power dissipation P C = 900 mW Outline TO-92MOD 1. Emitter 2. Collector 3. Base 3 2 1 2SC4693 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage
2SC4693
Hitachi Semiconductor
30.01 KB
Npn transistor.
