Part number:
2SC4695
Manufacturer:
Sanyo Semicon Device
File Size:
103.04 KB
Description:
Npn transistor.
* Adoption of FBET process.
* High DC current gain.
* High VEBO (VEBO≥25V).
* High reverse hFE (150 typ).
* Small ON resistance [Ron=1Ω (IB=5mA)].

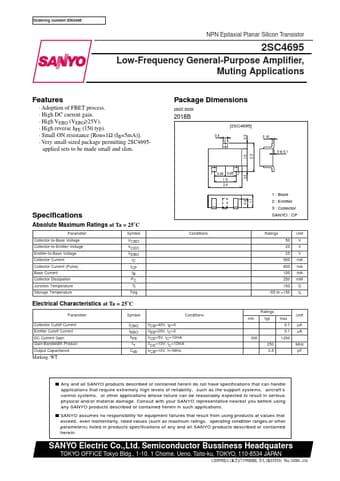

* Very small-sized package permitting 2SC4695- applied sets to be made small and slim. Package Dimensions unit:mm 2018B [2SC4695
2SC4695
Sanyo Semicon Device
103.04 KB
Npn transistor.
