2SK741 Datasheet - Hitachi

Silicon N-Channel MOSFET

2SK741 Features

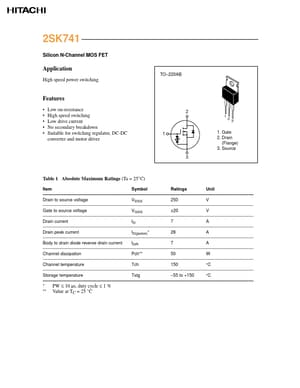

* Low on-resistance High speed switching Low drive current No secondary breakdown Suitable for switching regulator, DC-DC converter and motor driver 2 1 2 3 1 1. Gate 2. Drain (Flange) 3. Source 3 Table 1 Absolute Maximum Ratings (Ta = 25°C) Item Dr

2SK741 General Description

n 1S (T ho C 1.0 = t) 25 °C Operation in this area is ) limited by RDS (on) Drain Current ID (A) 10 10 1 m s Ta = 25°C 0.1 0 50 100 Case Temperature TC (°C) 150 1 100 10 1,000 Drain to Source Voltage VDS (V) www.DataSheet.co.kr Typical Output Characteristics 10 10 V 15 V 8 Drain Current ID.

2SK741 Datasheet (101.96 KB)

2SK741 Datasheet Preview — Preview of 2SK741 PDF

Datasheet Details

Part number:

2SK741

Manufacturer:

Hitachi

File Size:

101.96 KB

Description:

Silicon n-channel mosfet.
