C5023 - 2SC5023

Features

Excellent high frequency characteristics fT = 1000 MHz typ.
High breakdown voltage and low output capacitance VCEO = 100 V, Cob = 4.5 pF typ.
Suitable for wide band video amplifier TO.
126FM 123 1. Emitter 2. Collector 3. Base Absolute Maximum Ratings (Ta = 25°C) Item Symbol Rating Unit.

Hitachi

Datasheet Details

Part number	C5023
Manufacturer	Hitachi
File Size	41.39 KB
Description	2SC5023
Datasheet	C5023 Datasheet
Additional preview pages of the C5023 datasheet.

📁 Similar Datasheet

C5023CS - UPC5023 (NEC)
C502 - 8-Bit CMOS Microcontroller (Siemens)
C502 - PCI Dual Port Sync Board Manual (Moxa)
C5020 - 50A AVALANCHE AUTOMOTIVE CELL DIODE (Won-Top Electronics)
C5021CT-036 - UPC5021 (NEC)
C5022 - 2SC5022 (Hitachi Semiconductor)
C5024 - 50A AVALANCHE AUTOMOTIVE CELL DIODE (Won-Top Electronics)
C5024 - Silicon NPN Epitaxial (Hitachi Semiconductor)
C5026 - 2SC5026 (Panasonic Semiconductor)
C5027 - KSC5027 (Fairchild Semiconductor)

Other Datasheets by Hitachi

C5068A - 2SC5068A

Full PDF Text Transcription

Click to expand full text

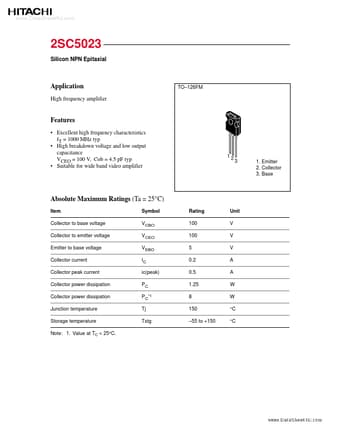

www.DataSheet4U.com 2SC5023 Silicon NPN Epitaxial Application High frequency amplifier Features • Excellent high frequency characteristics fT = 1000 MHz typ • High breakdown voltage and low output capacitance VCEO = 100 V, Cob = 4.5 pF typ • Suitable for wide band video amplifier TO–126FM 123 1. Emitter 2. Collector 3. Base Absolute Maximum Ratings (Ta = 25°C) Item Symbol Rating Unit ——————————————————————————————————————————— Collector to base voltage VCBO 100 V ——————————————————————————————————————————— Collector to emitter voltage VCEO 100 V ——————————————————————————————————————————— Emitter to base voltage VEBO 5 V ——————————————————————————————————————————— Collector current IC 0.
