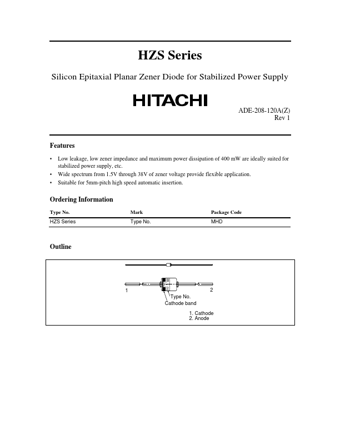

HZS - Silicon Epitaxial Planar Zener Diode for Stabilized Power Supply

Hitachi

Datasheet Details

Part number: HZS
Manufacturer: Hitachi
File Size: 39.04 KB
Datasheet: HZS_HitachiSemiconductor.pdf
Description: Silicon Epitaxial Planar Zener Diode for Stabilized Power Supply

Low leakage, low zener impedance and maximum power dissipation of 400 mW are ideally suited for stabilized power supply, etc. Wide spectrum from 1.5V through 38V of zener voltage provide flexible application. Suitable for 5mm-pitch high speed automatic insertion. Ordering Information Type No. HZS Series Mark Type No. Package Code MHD Outline B 7 2 1 2 Type No. Cathode band 1. Cathode 2. Anode HZS Series Absolute Maximum Ratings (Ta = 25°C) Item Power dissipa.
