HZS-L, HZS6L1 - (HZS-L Series) Silicon Epitaxial Planar Zener Diode for Low Noise Application

Name: HZS-L
SKU: HZS-L-544828

Renesas Technology

The HZS-L by Renesas Technology is a (HZS-L Series) Silicon Epitaxial Planar Zener Diode for Low Noise Application. Below is the official datasheet preview.

📥 Download Datasheet

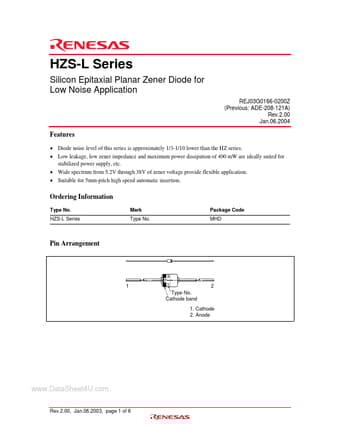

HZS-L (HZS-L Series) Silicon Epitaxial Planar Zener Diode for Low Noise Application by Renesas Technology - Datasheet Preview — Official preview page of the **HZS-L** (HZS-L Series) Silicon Epitaxial Planar Zener Diode for Low Noise Application datasheet (Renesas Technology).

Datasheet Details

Part number	HZS-L, HZS6L1
Manufacturer	Renesas Technology
File Size	109.35 KB
Description	(HZS-L Series) Silicon Epitaxial Planar Zener Diode for Low Noise Application
Datasheet	HZS6L1_RenesasTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: HZS-L, HZS6L1. Please refer to the document for exact specifications by model.
Additional preview pages of the HZS-L datasheet.

HZS-L Product details

Features

Diode noise level of this series is approximately 1/3-1/10 lower than the HZ series.
Low leakage, low zener impedance and maximum power dissipation of 400 mW are ideally suited for stabilized power supply, etc.
Wide spectrum from 5.2V through 38V of zener voltage provide flexible.
