HMC773 Datasheet, Mixer, Hittite Microwave Corporation

HMC773 Features

  • Mixer Passive: No DC Bias Required High Input IP3: +22 dBm High LO/RF Isolation: 38 dB Wide IF Bandwidth: DC - 10 GHz Upconversion & Downconversion Applications Die Size: 1.37 x 0.96 x 0.1 mm

PDF File Details

Part number:

HMC773

Manufacturer:

Hittite Microwave Corporation

File Size:

278.79kb

Download:

📄 Datasheet

Description:

Gaas mmic fundamental mixer. The HMC773 is a general purpose double balanced mixer chip that can be used as an upconverter or downconverter between 6 and 26 GHz.

Datasheet Preview: HMC773 📥 Download PDF (278.79kb)

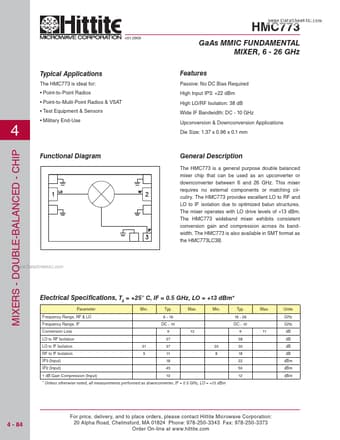

Page 2 of HMC773 Page 3 of HMC773

HMC773 Application

  • Applications Die Size: 1.37 x 0.96 x 0.1 mm Typical Applications The HMC773 is ideal for:
  • Point-to-Point Radios
  • Point-to-Mulit-
